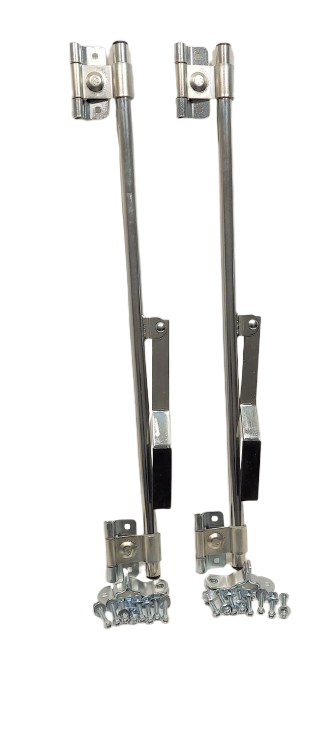

Utility Trailer Swing Side Ramp Door Bar Lock Latch Cargo Zinc 36″ Weldment 3057
$29.95
Designed to mount on flush doors, vertical application. Handle welded to dead center of pipe or bar. Welded pipe assembly designed to mount to body of trailer. When handle is rotated the handle and 36″ pipe rotate away from trailer body to allow door to open. When closed pipe applies pressure to door flange, securing door shut. Hasp placed in a position directly under handle to secure with padlock.
Rubber coated handle is centered on 36″ steel pipe, length from center of pipe to end of handle @ 14.50″
One Piece zinc plated hasp, swivel, accepts locking device, measures 2″w x 5.125″L, 4.00″ BC (bolt center)

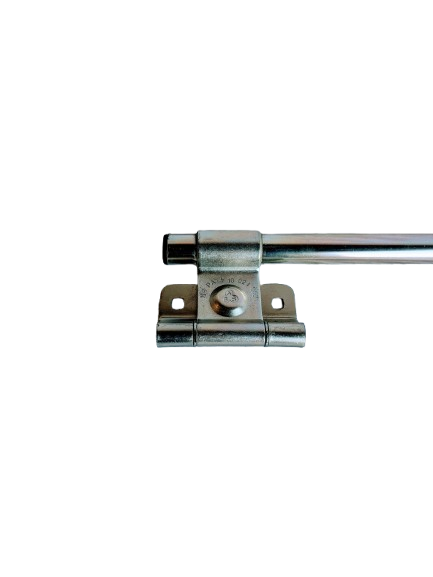

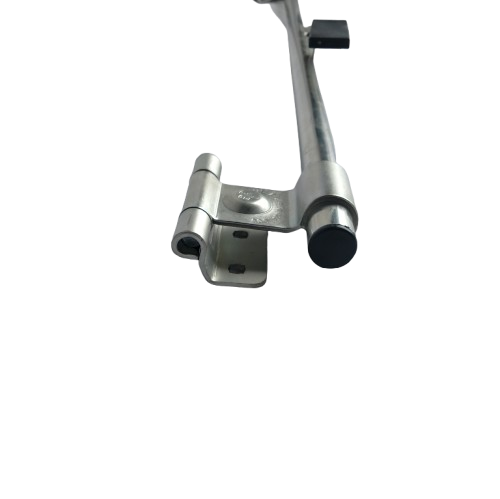

Hinge plate that fastens to trailer body measures from outside of pipe to outside of hinge @ 4″ Hinge itself measures 2″w x 4.50″L , Bolt Center 3.375″
2- Zinc plated roller hinge welded out at end of 36″L, 1″ diameter galvanized pipe
4 – 5/16″ x 1/2″ camtainer nuts included
Out of stock
Zinc Plated Bar Cam Lock Kit Assembly for Enclosed Utility Cargo Trailers, Truck bodies, Vans
To Include the following:
Designed to mount on flush doors, vertical application. Handle welded to dead center of pipe or bar, roller hinges added out at pipe ends. Hasp placed in a position directly under handle to secure with padlock.
This model can be built to any length required.
Rubber coated handle (requires welding to Sch 10 or 40 pipe) handle size 1/4″ x 1.25″w x 14″L
One Piece zinc plated hasp, swivel, accepts locking device 1″w x 5.25″L, 4.25″ BC (bolt center)
2 ea. zinc plated roller hinges (2″w x 4.5″L) 3.25″ Bolt center
Schedule pipe required, requires cut to length (not included)
5/16″ bolts not included
| Weight | 160 oz |
|---|---|
| Dimensions | 36 × 7 × 2 in |
