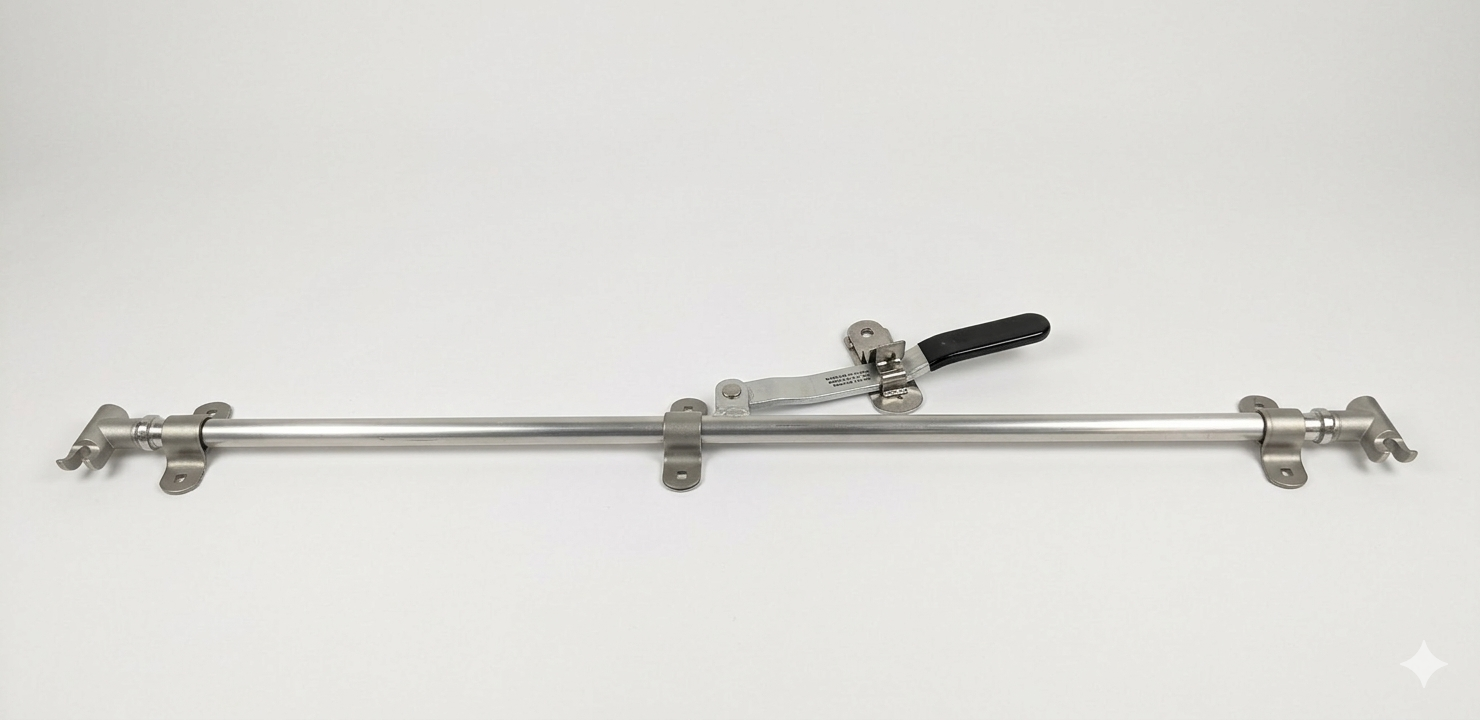

Trailer Cam Lock Latch Assembly 48″ for Enclosed, Horse Utility Trailers Claw End Aluminum

48″ Overall Length Welded Aluminum Bar Lock Assembly with lug ends for Enclosed Utility Cargo Trailers, Truck bodies, Vans
To Include the following:

• • 48″ Overall length outside to outside of lugs ( see image)
  • Mount keepers on door header top & bottom.
  • Designed to mount on flush doors
  • Rubber coated aluminum handle( see print for dimensions)
  • 2 Piece Stainless Steel Hasp, swivel, accepts locking device, hole size

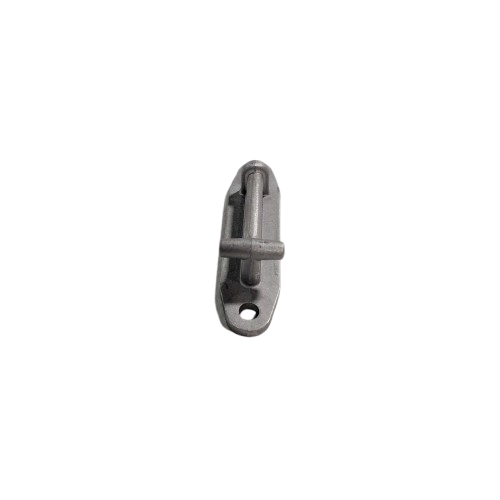

  • Aluminum Die Cast Top and Bottom Keeper
  • Aluminum die cast top and bottom lugs
  • 3 ea. #304 stainless steel top pipe retainer
  • 3 ea plastic bottom pipe retainer (mounted behind pipe to act as bearing)
  • 3/4″ Sch40 mill finish aluminum pipe, MIG welded
  • Mounting hardware not included
