“T” Door Handle Lockable CW T305 w/cam

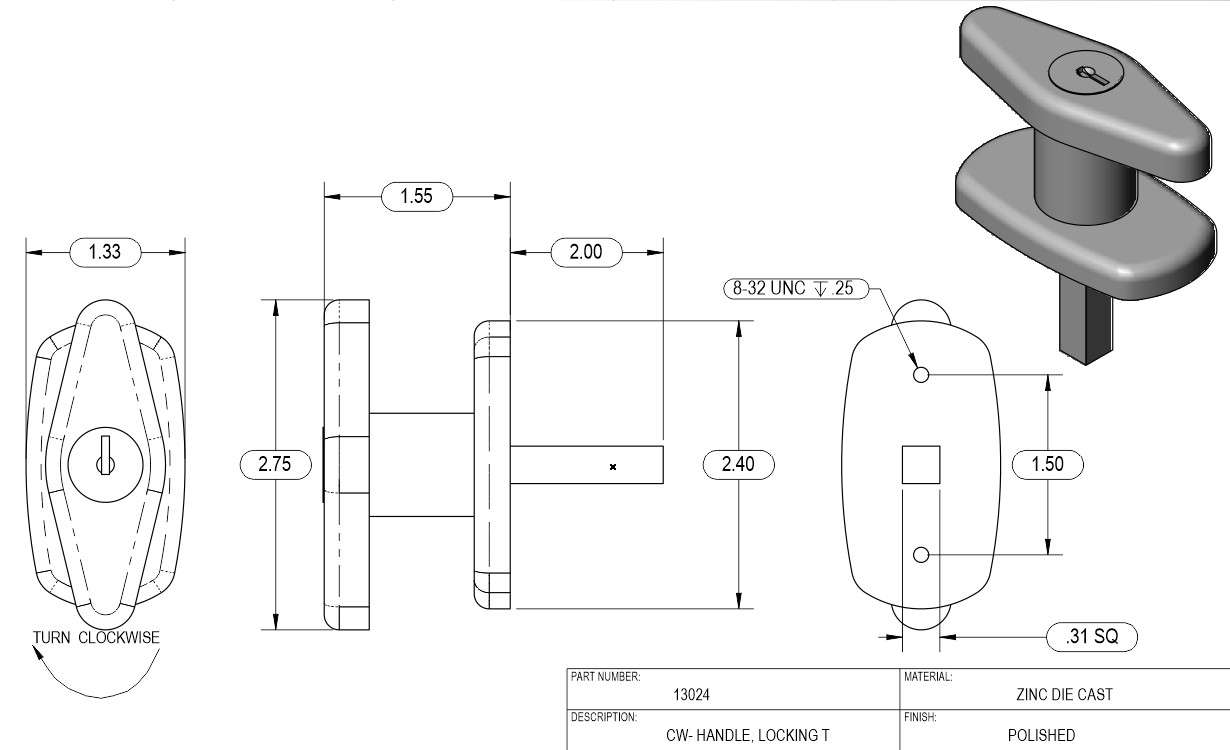

“T” for kennel/ storage doors. 90 deg rotation CW to unlock. 5/16″ sq shaft x 2.25″L , 8-32 screw size, 1.5″ screw centers, blind mount. Includes adjustable cam as seen in photo. Keyed alike, #112 key. Drill holes required are center hole at 7/8″ diameter, mount hole are at 3/16″ dia.x 1.5″ BC. Rotation to unlock is determined by location of hinge. Facing door, hinge on right = CW. See drawing for references.
