Home/Handles/"T" Handles
“T” Handle Lockable CCW T305
$9.00

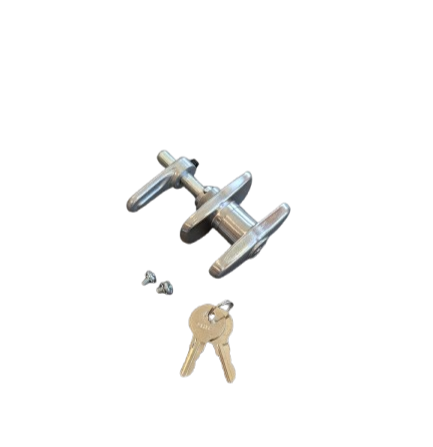

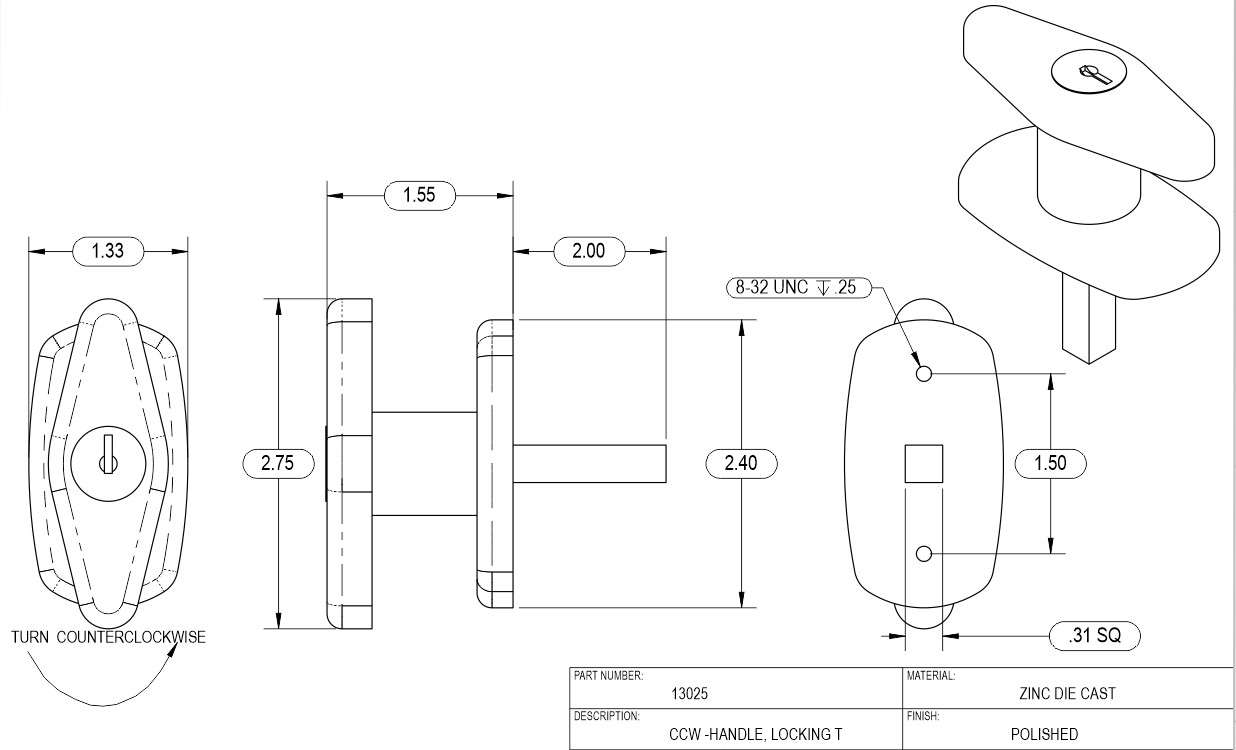

“T” for kennel doors. 90 deg rotation CCW to unlock. 5/16″ sq shaft x 2.25″L , 1.5″ screw centers, blind mount. Includes adjustable cam as seen in photo. Drill holes required are center hole at 7/8″ diameter, mount hole are at 3/16″ dia.x 1.5″ BC. Rotation determined by location of hinge. Facing door, hinge on left,= CCW. Keyed alike, #112 key
| Weight | 9 oz |
|---|---|
| Dimensions | 4.0 x 3.0 x 1.0 in |
Be the first to review ““T” Handle Lockable CCW T305”
Related Products
-
Single Point Latch 46ZN
$3.00Single point latch designed to operate with “L” and “T” handles. Specific for two point latch on dog doors or storage boxes.Extended tang to strike behind door frame.
Mounting designed to place in center of door, either mounted directly to door plate or raised away from backside with sq tubing. single point measures 1″w x 3″L with a 5/16″ sq hole to accept “L” or “T” handle shaft.
-
Door Safety Tab SS
$16.00Stainless Steel safety tab. Pair sold as set. Flat plate mounts to door frame. Slot is required into door to to allow plate to pass through. Angle clip is pop riveted to face of door and attach cable with clip. (sold separately) Aluminum Rivets included.
Flat Plate and angle bracket measure 1″ w.
-
“L” Handle 360 Rotation BPL225 1.75″ Mount Centers
$9.00“L” handle for kennel doors. 360 rotation, rigid when locked. 5/16″ sq shaft x 4″L, 1.75″ screw centers, through hole mount. Designed to work with the 5611 center case latch. Drill holes required are center hole at 7/8″ diameter, mount hole are at 3/16″ dia. x 1.75″ BC. 112 key number.
-
Handle Adjustable Cam Latch C15
$5.00Cam to be used on “T” or “L” handles. Accepts a 5/16″ square shaft. Aluminum material.
Overall length 2.0″ ,1.625″ center of sq hole to tip x .375″ thick
Set screw with allen head for securing -
“L” Handle 360 Rotation L204R 1.5″ BC
$18.00“L” handle for kennel doors. 360 rotation, rigid when locked. 5/16″ sq shaft x 4″L, 1.5″ screw centers, through hole mount. Designed to work with the 5611 center case latch. Drill holes required are center hole at 7/8″ diameter, mount hole are at 3/16″ dia. x 1.5″ BC. 112 key number.. 751 key is an option, make note upon order entry of this choice.
-
Door Safety Tab SS
$18.00Stainless Steel safety tab. Pair sold as set. Flat plate mounts to door frame. Slot is required into door to to allow plate to pass through. Angle clip is pop riveted to face of door and attach cable with clip. (sold separately) Aluminum Rivets included.
Flat Plate and angle bracket measure 1″ w.
-
“T” Handle HT303 360 Rotation Keyed Alike
$10.00“T” handle that rotates 360 deg. Designed to use with center case latch (5611). Mounting hole in base of handle. 5/16″ x 4″L sq shaft, To mount requires center hole at 7/8″ diameter, 2- 3/16″ hole x 1.5″ BC. Includes key #112, all sharing same key number.
