High-Profile Black Steel Popup Horse Trailer Replacement Vent Kit | Bi-Directional | Gasket & Ceiling Trim

• High-Profile Clearance: Offers maximum airflow with a total open height of 4.75″ from the flange to the cover edge.

• Weather-Tight Seal: Features a gasketed lid and a secure clamping mechanism to prevent water entry when closed.

• Durable Aluminum Construction: Lightweight yet rugged enough to withstand highway speeds and harsh weather conditions.

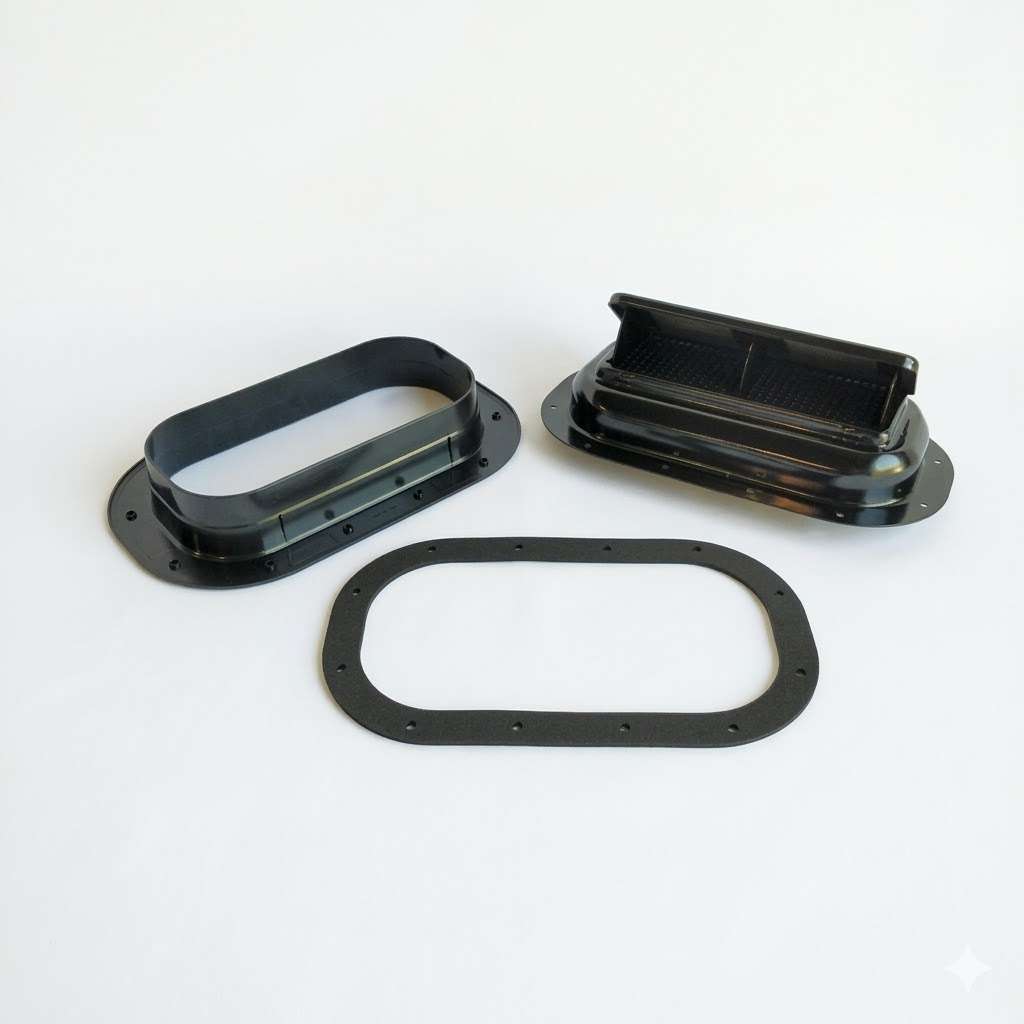

• Complete Installation Kit: Includes (1) high-profile vents, (1) roof gasket , ceiling trim

• Includes cutout template for accurate hole to install vent.

Vent Technical Specifications:

• Overall Size (Closed): 13.375″ L x 7.75″ W x 2.25″ H

• Cutout Dimension: 5 5/8″ x 11 1/4″ (Requires a 2.25″ corner radius)

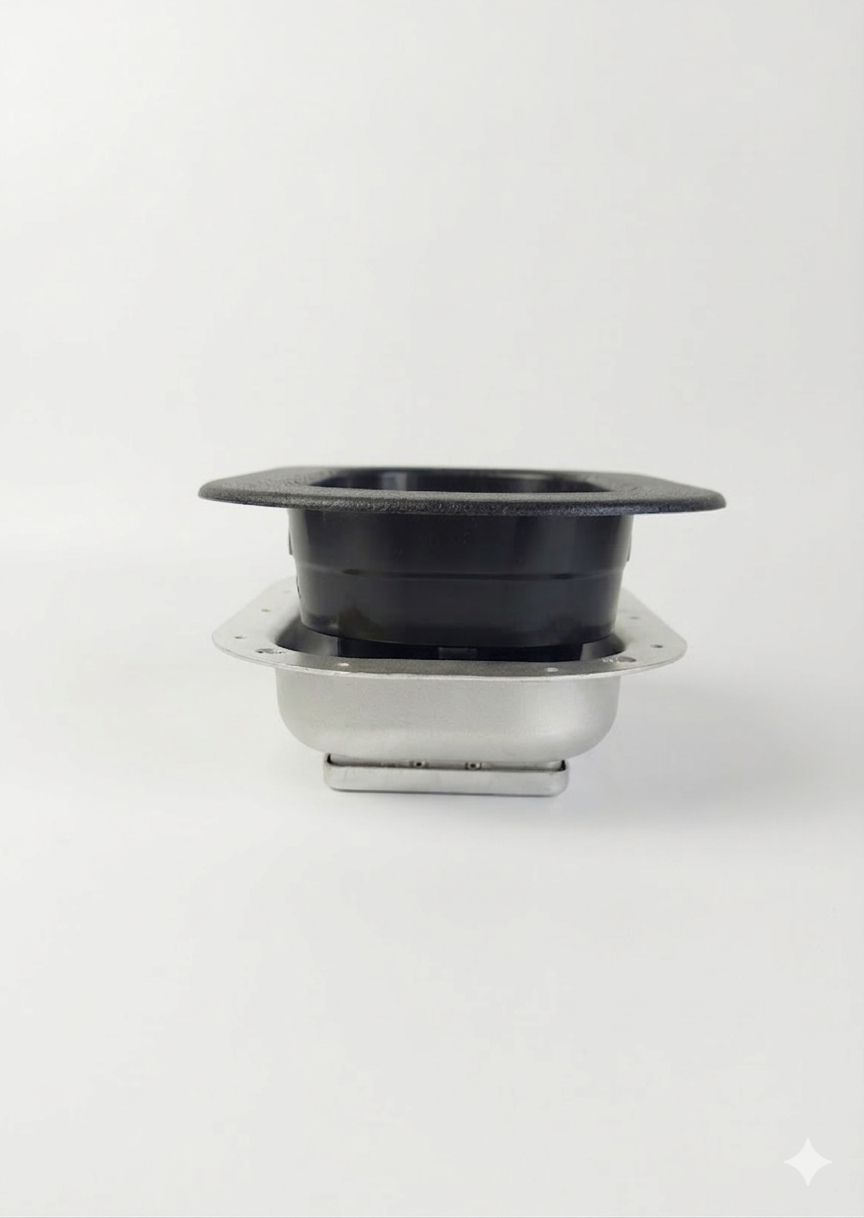

• Internal Depth: Extends 1.5″ into the box area when closed.

• Mounting: Pre-drilled perimeter with (12) 3/16″ diameter fastening holes.

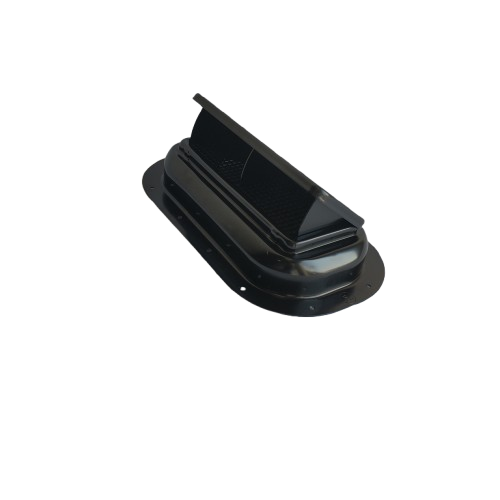

• Application Tip: Top lid is bidirectional with handle operation from bottom side. Allows lid position to scoop air into containment space or reverse lid to prevent water intrusion during travel in rain.

• These high-profile vents are ideal for trailers requiring increased air exchange.
• The bi-directional lid allows you to customize the interior climate based on travel direction and wind conditions.
