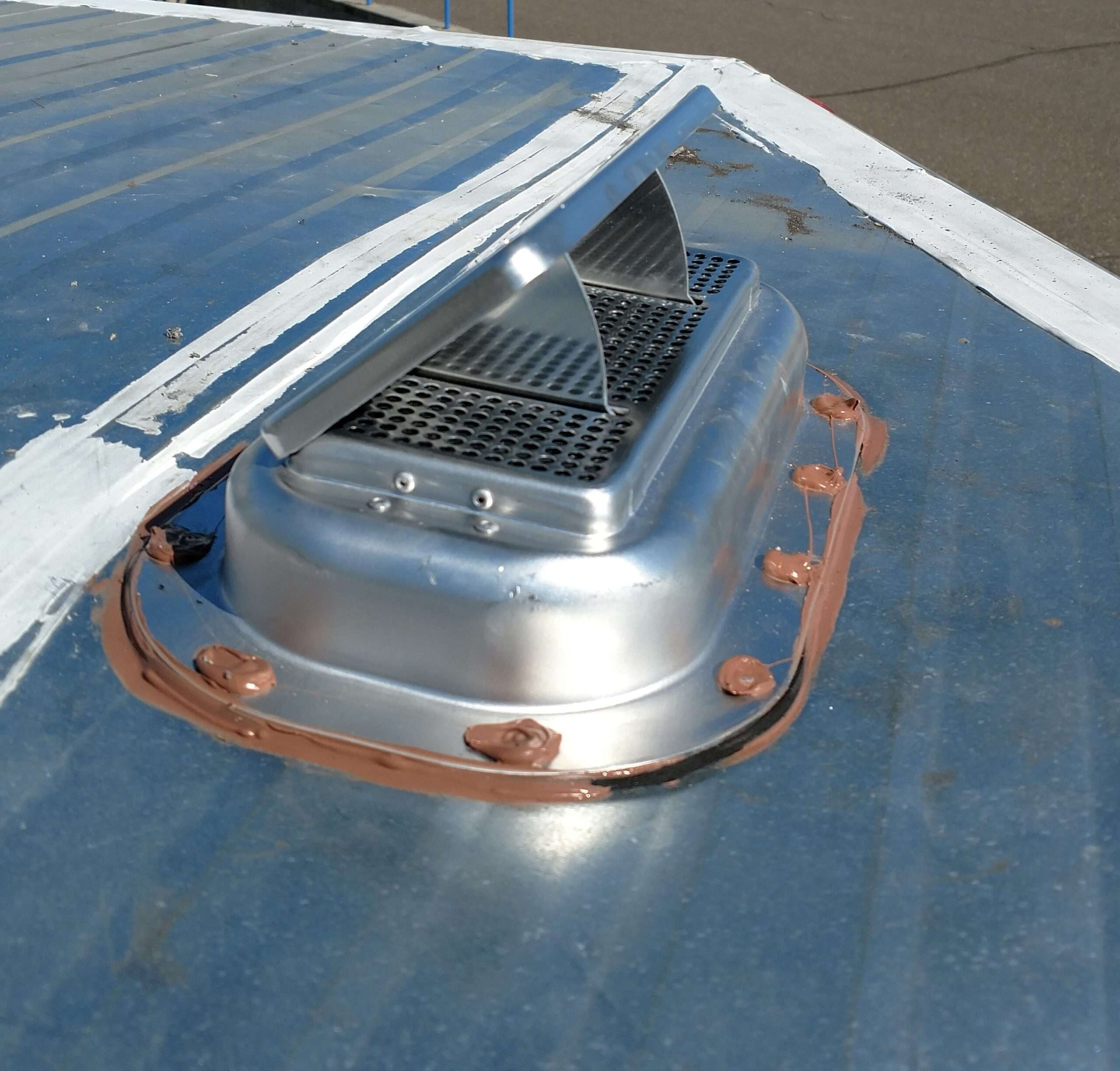

- Aluminum Pop-up vent overall size 13.375 L x 7.75 w x 2.25 h (cover down)
- Deep extending into box area with cover down at 1.5″, flange to bottom of handle
- Total height from flange to cover edge in open position at 4.75″
- Bi-directional, forward or reverse top opening.
- Mounting flange has a perimeter of holes for fastening, (12) 3/16″ diameter
- Top lid securely clamps down to prevent water entry, gasket-ed lid
- Cutout opening 5 5/8″ x 11 1/4″, inside corners require a 2.25″ radius
- 1/8″ neoprene gasket

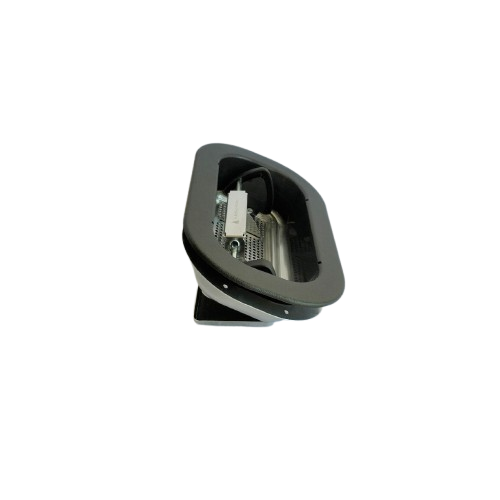

- Includes trim ring that seals of cutout on underside to cover insulation or jagged edge
- 2.25″ ceiling thickness or can be trimmed to a shallower depth
| Weight | 34 oz |
|---|---|
| Dimensions | 13.375 × 7.75 × 2.25 in |
