Door Center Case Latch, Spring Secured 3/8″x 36″ Rods |Hold Downs for Electrical Tool Box Cabinets

Name: Door Center Case Latch, Spring Secured 3/8"x 36" Rods |Hold Downs for Electrical Tool Box Cabinets
SKU: 12214
Price: 74.35 USD
Availability: InStock

Original price was: $79.95.Current price is: $74.35.

SKU: 12214

Captcha *

Refresh Captcha

SKU: 12214 Categories: Latches, 3 PT Door Latches, Storage Door Latches

Description
Additional information

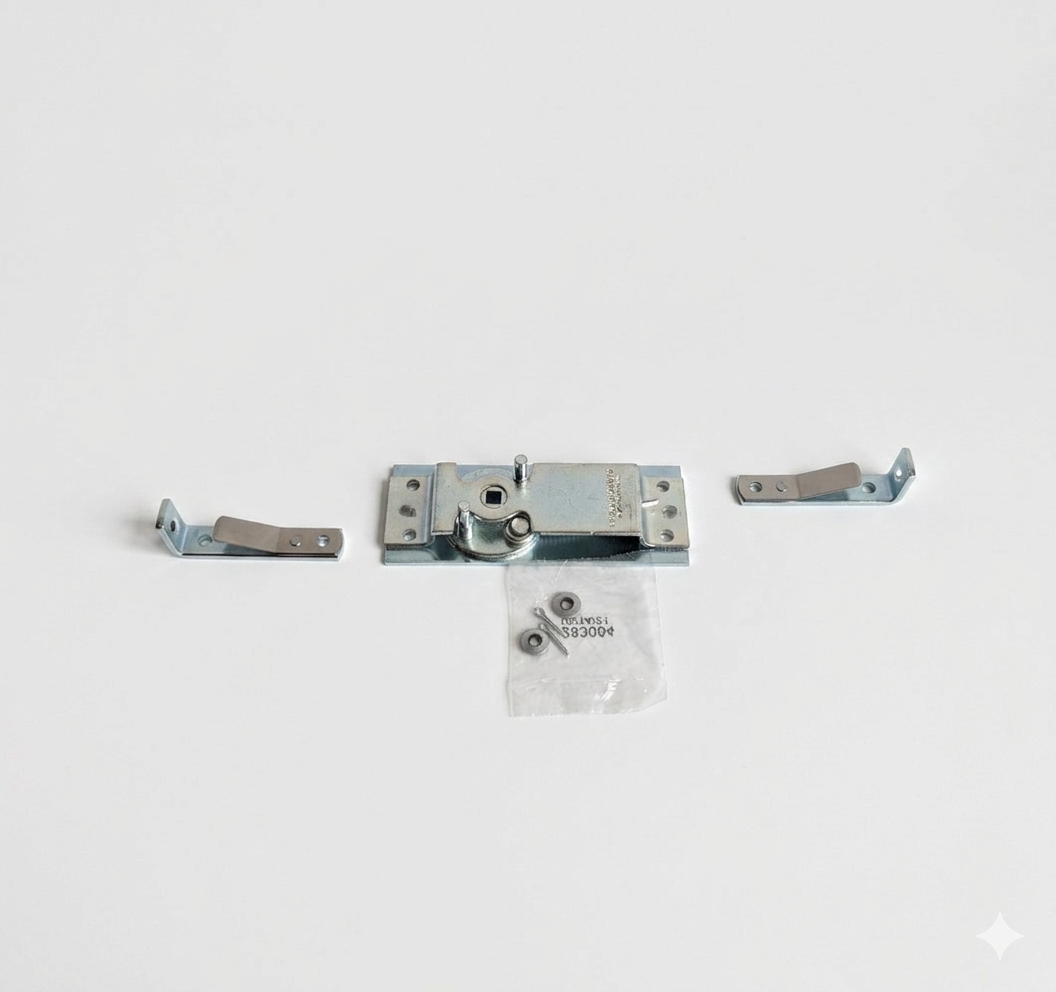

Applications for electrical enclosures, tool box and cabinets with large doors
Center case latch designed to operate with handles with a 5/16″ sq shaft

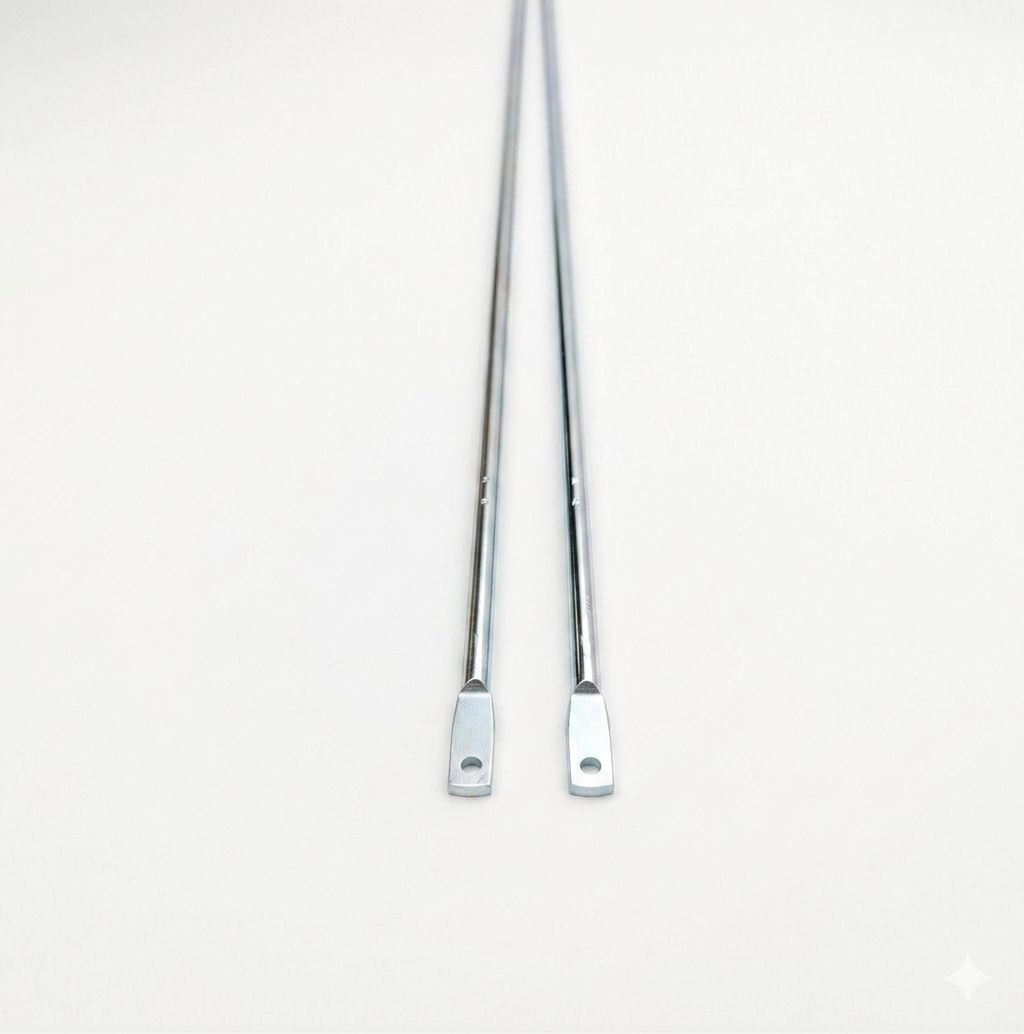

2 – .375″ x 36″ zinc plated alloy steel rods with hold down clips & cotter pins

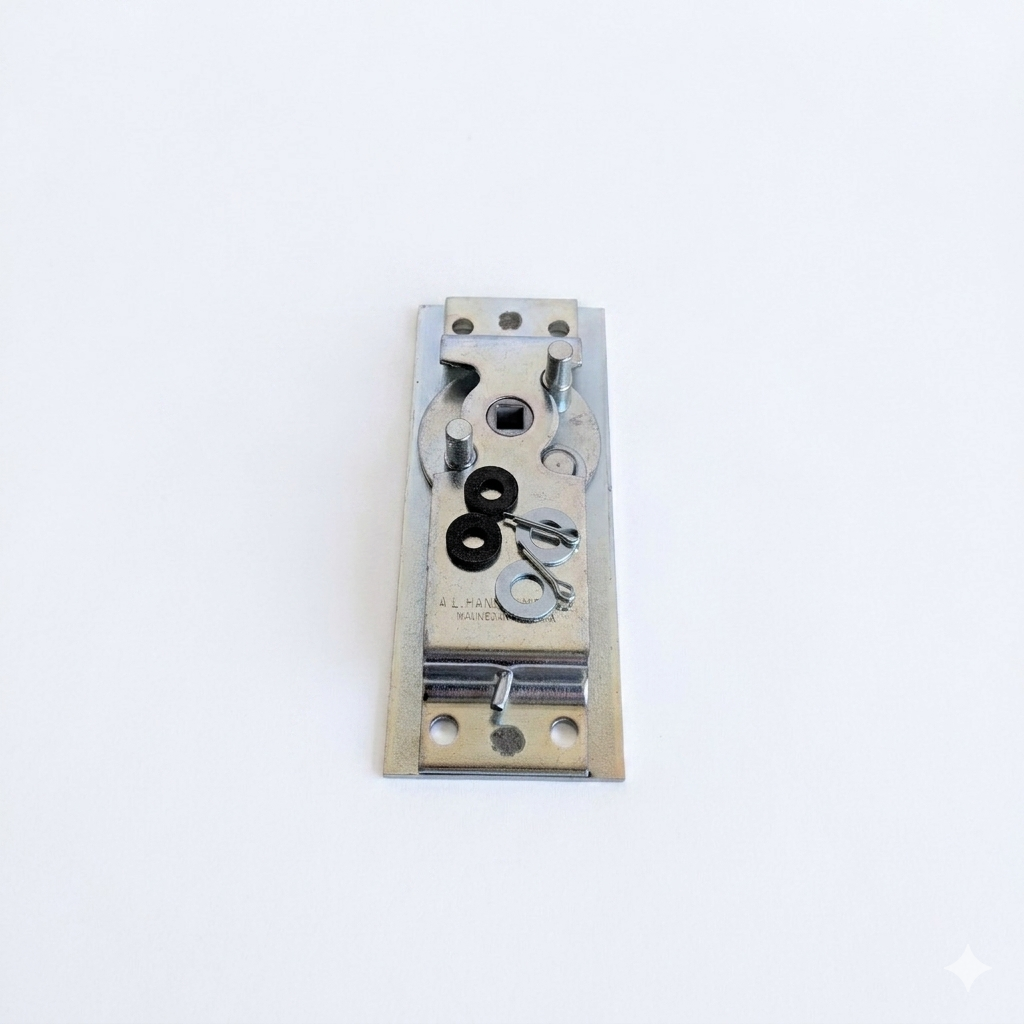

Center Case alone measures 2.50″ w x 6.312″L x .75″ H
Spring loaded to “snap into place” mechanism.
Mounting designed to place center case on backside of door, either mounted directly to door plate or raised away from backside with sq tubing.

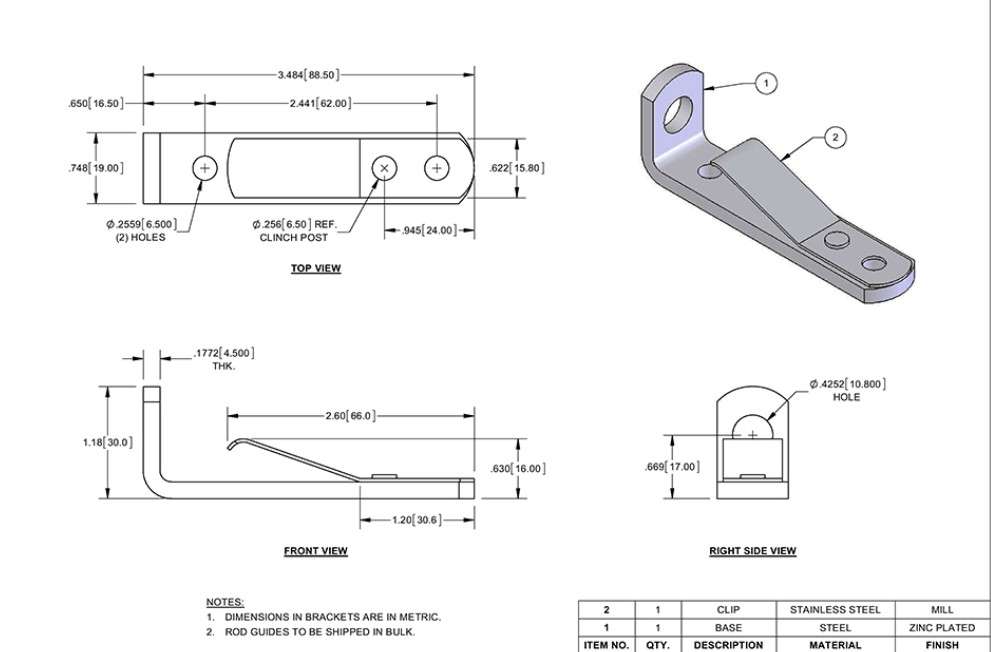

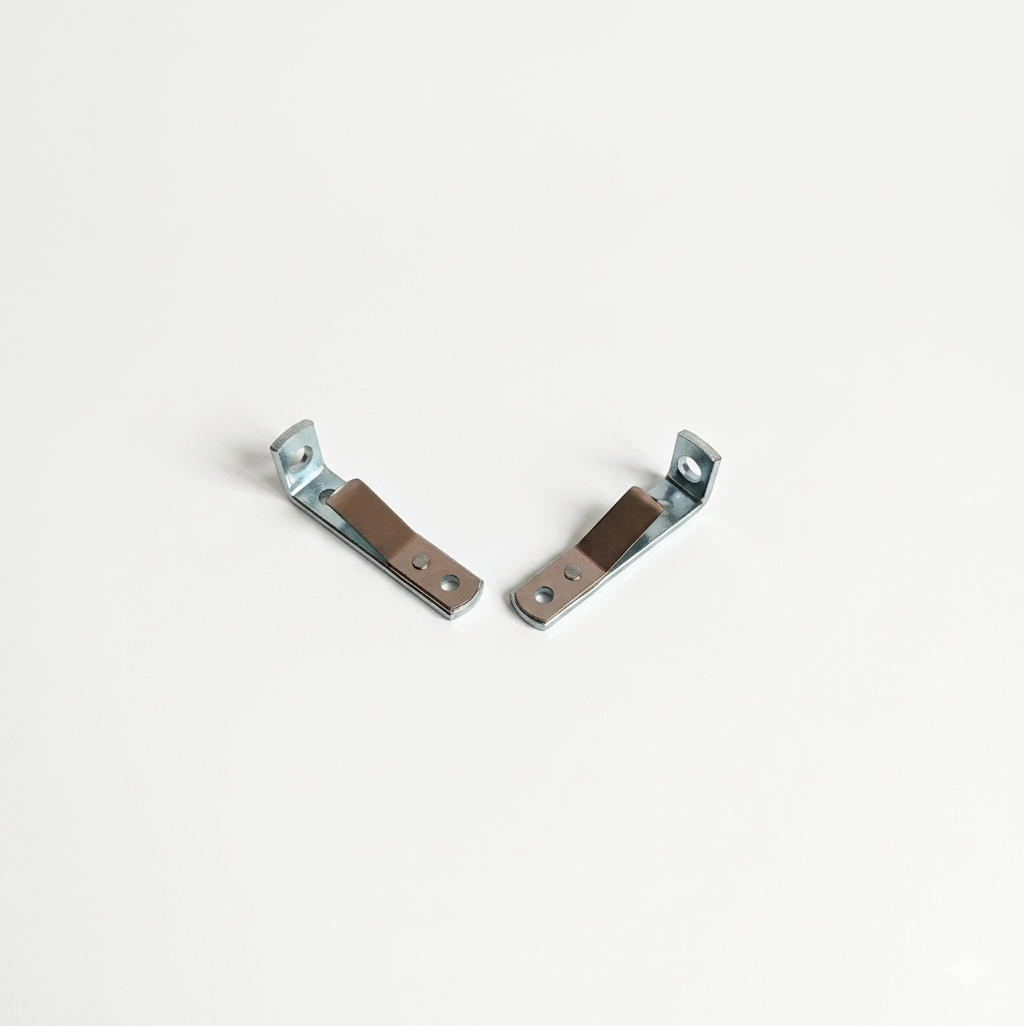

Hold down clips are placed out at rod ends and can secure door by striking behind door frame or drilling holes into frame.
Overall throw @ 1 5/32″.

Weight	106 oz
Dimensions	37 × 5 × 5 in
