Door Center Case Latch, Spring Secured 3/8″x 48″ Rods |Hold Downs for Electrical Tool Box Cabinets

Original price was: $85.95.Current price is: $79.93.

SKU: 12215

Center Case Latch, Spring snap to hold secure
For Electrical & Tool Box Cabinets
.375″x 48 rods 2pcs
Heavy duty construction
Works well with 51/6″ SQ shaft L or T handles

Captcha *

Refresh Captcha

SKU: 12215 Categories: Latches, 3 PT Door Latches, Storage Door Latches

Description
Additional information

Applications for electrical enclosures, tool box and cabinets with large doors
Center case latch designed to operate with handles with a 5/16″ sq shaft
2 – .375″ x 48″ Rods and hold down clips & cotter pins
Center Case alone measures 2.50″ w x 6.312″L x .75″ H
Spring loaded to “snap into place” mechanism.
Mounting designed to place center case on backside of door, either mounted directly to door plate or raised away from backside with sq tubing.

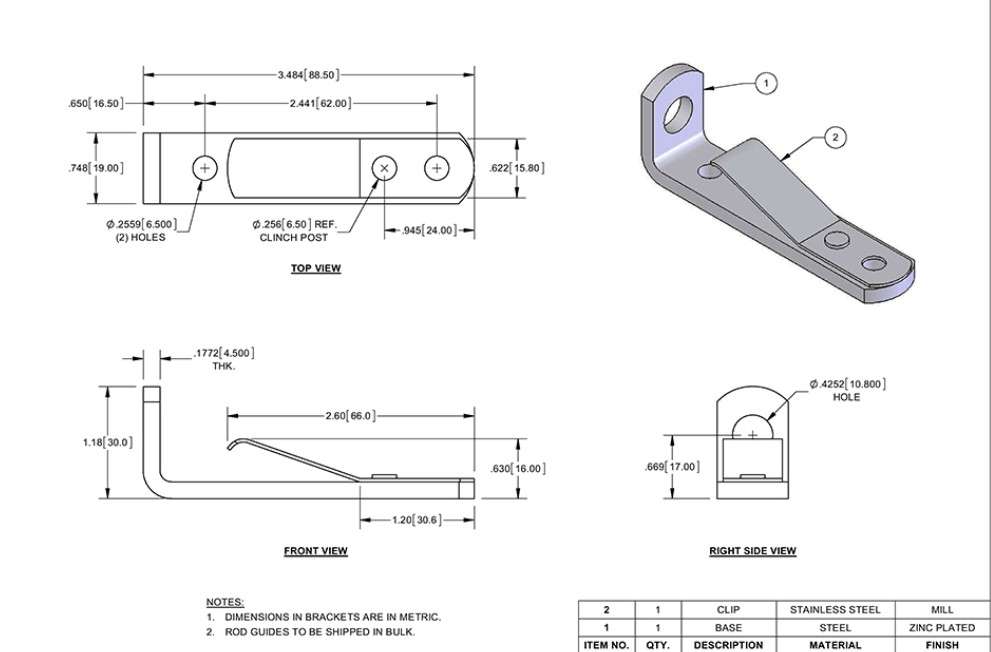

Hold down clips are placed out at rod ends and can secure door by striking behind door frame or drilling holes into frame.
Overall throw @ 1 5/32″.

Weight	140 oz
Dimensions	49 × 5 × 5 in
