Trailer Ramp Door Bar Lock Latch Enclosed Cargo Zinc 401Z

$28.50

To Include the following:

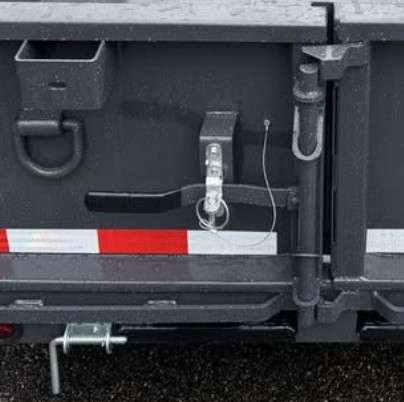

Designed to mount on flush doors, vertical application. Keepers placed on stationary part of trailer. Handle welded to pipe with lugs welded into pipe ends. Handle portion and U clamps used to secure pipe placed on fold down or swing away door. Hasp placed in a position directly under handle to secure with padlock.
This model can be built to any length required.

Rubber coated handle (requires welding to 1″ Sch40 pipe) handle size 1.25″w  x 13.75″L
One Piece zinc plated hasp, swivel, accepts locking device 1″w x 5.5″L, 4.25″ BC (bolt center)
Zinc plated Top and Bottom Keeper- 1.375″w x 5″L, 4″ BC
Zinc plated top and bottom lugs(require welding to pipe) 2.5″L (1″ of which slides to interior of pipe)
3 ea. zinc plated steel top pipe retainer (1.5″w x 4″L) 2.875″ BC
3 ea zinc plated pipe retainer (mounted behind pipe to act as bearing) (dimensions as above)
1″ Schedule 40 pipe required, requires cut to length (not included)
Mounting hardware not included

SKU: 12022 Category:
Weight 64 oz
Dimensions 12 x 10 x 3 in
